Hi-Giene Square Surface

Australian-made and designed square surface fitting for high hygiene and food processing applications.

This versatile and cost effective luminaire is a perfect choice for all applications that require a high degree of hygiene application.

It is available in a square surface mount and square recessed fittings. Suitable for a wide range of applications from food processing, dairy and pharmaceutical.

Product details

  • Australian-made and designed
  • High quality driver and LED chips
  • Aluminium housing
  • Suitable for food processing applications
  • Customisable to your project needs
  • Design for retrofit options for existing housing available
  • 5-year warranty

Applications

  • Food processing and manufacturing plants,
  • Food packaging facilities,
  • Freezers including blast freezer applications,
  • Chillers,
  • Dairies,
  • Abattoirs,
  • Pharmaceutical facilities,
  • Cool rooms,
  • Warehouse & distribution centres.

RCM TickISO9001

LED

Illumination grade CREE LED light source.

Citizen


LED Driver

High-end programmable Mean Well LED driver, provides excellent performance and lifespan.

Mean Well

Specifications

HGS11S480R100M HGS16S480R150M HGS21S480R180M HGS27S480R250M
Item code 34693 34130 34692 33825
Nominal Wattage 100W 150W 180W 250W
AC input voltage 220-240V, 50/60Hz
LED brand Cree
Driver brand Mean Well
Driver position Remote (Integral also available)
Rated current @240V 1.06A
Operating temperature -40°C to +50°C Remote driver (-40°C to +50°C Integral driver)
Power factor (PF) >0.95
THD <20%
Surge protection 2kV (L-L), 4kV (L-E)
Leakage current <0.75mA / 277VAC
Lumen output (+/-5%) 11,677Lm 16,565Lm 21,032Lm 27,155Lm
Luminaire efficacy (+/-5%) Up to 117Lm/W
Luminaire classification Class I
Light distribution type Symmetrical
CRI 80
CCT 4000K (5000K optional)
Rating IP66
Control system 0-10V dimming (DALI, motion sensor, smart control – optional)
Housing material Aluminium & zinc steel
Optics material Injection moulded acrylic
Finish White powder coating
Intelligent Control Built-in microwave motion sensor (standalone & paired system), smart device based Bluetooth control system (optional)
Emergency Options Manual test, self test & centralised monitoring
Lumen maintenance >50,000 hours
Certifications RCM
Packaging type 1 unit / carton

The tolerance range of test data above is ±6%, but normally warm white is ±8%.

Dimensions

Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.

Hi-Giene Square Surface
Dimensions (mm) 648 x 648 x 176
Weight 13kg Net (15kg Gross)
Hi-Giene Square Surface dimensions
Hi-Giene Square Surface

Photometric distribution

Average beam angle (50%): C 0º - C 180º.

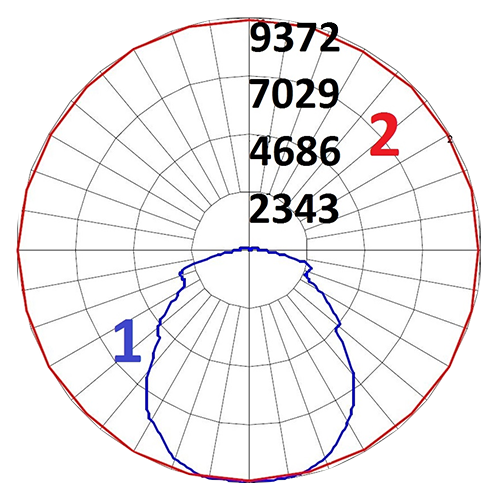

Polar diagram
C 0º - C 180º
