Hi-Giene Square Recess

Australian-made and designed square recess fitting for high hygiene and food processing applications.

This versatile and cost effective luminaire is a perfect choice for all applications that require a high degree of hygiene application.

It is available in a surface mount and square recessed fittings. Suitable for a wide range of applications from food processing, dairy and pharmaceutical.

Product details

  • Australian-made and designed
  • High quality driver and LED chips
  • Aluminium housing
  • Suitable for food processing applications
  • Customisable to your project needs
  • Design for retrofit options for existing housing available
  • 5-year warranty

Applications

  • Food processing and manufacturing plants,
  • Food packaging facilities,
  • Freezers including blast freezer applications,
  • Chillers,
  • Dairies,
  • Abattoirs,
  • Pharmaceutical facilities,
  • Cool rooms,
  • Warehouse & distribution centres.

RCM TickISO9001

LED

Illumination grade CREE LED light source.

Citizen


LED Driver

High-end programmable Mean Well LED driver, provides excellent performance and lifespan.

Mean Well

Specifications

HGS11R480R100M/WM   HGS16R480R150M/WM   HGS21R480R180M/WM HGR26R480R250M/WM
Item code 34690 34691 34398 33785
Nominal Wattage 100W 150W 180W 250W
AC input voltage 220-240V, 50/60Hz
LED brand Cree
Driver brand Mean Well
Driver position Remote (Integral also available)
Rated current @240V 1.06A
Operating temperature -40°C to +50°C Remote driver (-40°C to +50°C Integral driver)
Power factor (PF) >0.95
THD <20%
Surge protection 2kV (L-L), 4kV (L-E)
Leakage current <0.75mA / 277VAC
Lumen output (+/-5%) 11,677Lm 16,565Lm 21,032Lm 27,155Lm
Luminaire efficacy (+/-5%) 117lm/W
Luminaire classification Class I
Light distribution type Symmetrical
CRI 80
CCT 4000K (5000K optional)
Rating IP66
Control system 0-10V dimming (DALI, motion sensor, smart control – optional)
Housing material Aluminium
Optics material Injection moulded acrylic
Finish White powder coating
Intelligent Control Built-in microwave motion sensor (standalone & paired system), smart device based Bluetooth control system (optional)
Emergency Options Manual test, self test & centralised monitoring
Lumen maintenance >50,000 hours
Certifications RCM
Packaging type 1 unit / carton

The tolerance range of test data above is ±6%, but normally warm white is ±8%.

Dimensions

Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.

Hi-Giene Square Recess
Dimensions (mm) 640 (diameter) x 176 (depth)
Weight 10kg Net (12kg Gross)
Hi-Giene Square Recess dimensions
Hi-Giene Square Recess

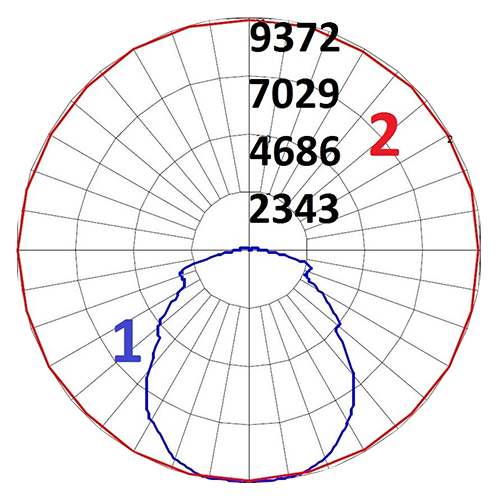

Photometric distribution

Average beam angle (50%): C 0º - C 180º.

Polar diagram
C 0º - C 180º
