Hi-Giene Round Surface

Australian-made and designed round surface fitting for high hygiene and food processing applications.

This versatile and cost effective luminaire is a perfect choice for all applications that require a high degree of hygiene application.

It is available in a round pendant, round surface mount and round recessed fittings. Suitable for a wide range of applications from food processing, dairy and pharmaceutical.

Product details

  • Australian-made and designed
  • High quality driver and LED chips
  • Aluminium housing
  • Suitable for food processing applications
  • Customisable to your project needs
  • Design for retrofit options for existing housing available
  • 5-year warranty

Applications

  • Food processing and manufacturing plants,
  • Food packaging facilities,
  • Freezers including blast freezer applications,
  • Chillers,
  • Dairies,
  • Abattoirs,
  • Pharmaceutical facilities,
  • Cool rooms,
  • Warehouse & distribution centres.

HACCP Certified

We are extremely proud our Australian designed and made Hi-Giene Round Surface light is HACCP Certified recognising them as a very well designed luminaires, that are well-sealed and easy to clean; perfect for the Australian food industry!

HACCP International is a renowned certification body specialising in the certification of food safe equipment, products and services that support the food industry.


RCM TickISO9001HACCP

LED

Illumination grade CREE LED light source.

Citizen


LED Driver

High-end programmable Mean Well LED driver, provides excellent performance and lifespan.

Mean Well

Specifications

HGR11S480R100M HGR16S480R150M HGR20S480R180M HGR26S480R250M
Item code 34485 34075 34076 33898
Nominal Wattage 100W 150W 180W 250W
AC input voltage 220-240V, 50/60Hz
LED brand Cree
Driver brand Mean Well
Driver position Remote (Integral also available)
Rated current @240V 1.06A
Operating temperature -40°C to +50°C Remote driver (-40°C to +50°C Integral driver)
Power factor (PF) >0.95
THD <20%
Surge protection 2kV (L-L), 4kV (L-E)
Leakage current <0.75mA / 277VAC
Lumen output (+/-5%) 11,339Lm 15,811Lm 20,411Lm 26,352Lm
Luminaire efficacy (+/-5%) 114lm/W
Luminaire classification Class I
Light distribution type Symmetrical
CRI 80
CCT 4000K (5000K optional)
Rating IP66
Control system 0-10V dimming (DALI, motion sensor, smart control – optional)
Housing material Aluminium
Optics material Injection moulded acrylic
Finish White powder coating
Intelligent Control Built-in microwave motion sensor (standalone & paired system), smart device based Bluetooth control system (optional)
Emergency Options Manual test, self test & centralised monitoring
Lumen maintenance >50,000 hours
Certifications RCM, HACCP
Packaging type 1 unit / carton

The tolerance range of test data above is ±6%, but normally warm white is ±8%.

Dimensions

Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.

Hi-Giene Round Surface
Dimensions (mm) 330 (diameter) x 248 (depth)
Weight 10kg Net (12kg Gross)
Hi-Giene Round Surface dimensions
Hi-Giene Round Surface

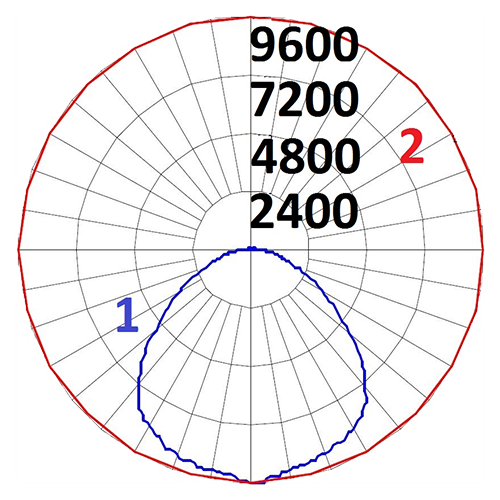

Photometric distribution

Average beam angle (50%): C 0º - C 180º.

Polar diagram
C 0º - C 180º
