PowerLED Handrail
The handrail solution allows specifiers and contractors complete flexibility throughout all stages of a project.
The PowerLED Handrail can be installed after the handrail has been manufactured and fitted by the metalwork contractor. The fixtures are installed through pre-cut apertures in the rail, and connected to the electrical bus system by an IP rated plug and play connector.
Long continuous runs make the PowerLED an ideal solution for bridges, overhead flyovers, internal glazed walkways and staircases.
Emergency lighting options are available on request.
Product details
- Three colour temperatures: 2700K, 4000K & 5000K
- Anodised aluminium extrusion (silver & black) powder coated (white)
- IK10 Vandal resistant
- IP66 Weatherproof
- Suitable for circular & non-circular profiles
- Resin sealed acrylic lens
- Polycarbonate end caps
Applications
- Office, Retail, Interior & Exterior environments
- Metal handrails, timber handrails, extruded & formed architectural profiles
- Street furniture, benches, posts, columns, bridges & staircases
- Entrance access points
- Walkways
Specifications
LTC PowerLED Handrail is available in 2700K, 4000K and 5000K CCT.
| Light Unit | PowerLED Handrail |
|---|---|
| Item code | PLH420 |
| Power input | 24VDC |
| Power consumption | 4.2W |
| Power correction factor | >0.9 |
| Lumen output | 385Lm |
| Beam angle | 80˚ |
| CCT | 2400K, 4000K & 5000K |
| CRI | 80 |
| Material/Finish | Anodised aluminium extrusion (silver & black), powder coated (white) Resin sealed acrylic lens Polycarbonate end caps |
| IP Rating | IP66 |
| IK Rating | IK10 |
Dimensions
Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.
| PowerLED Handrail | |
|---|---|
| Dimensions (mm) | 395 (length) x 16 (width) |

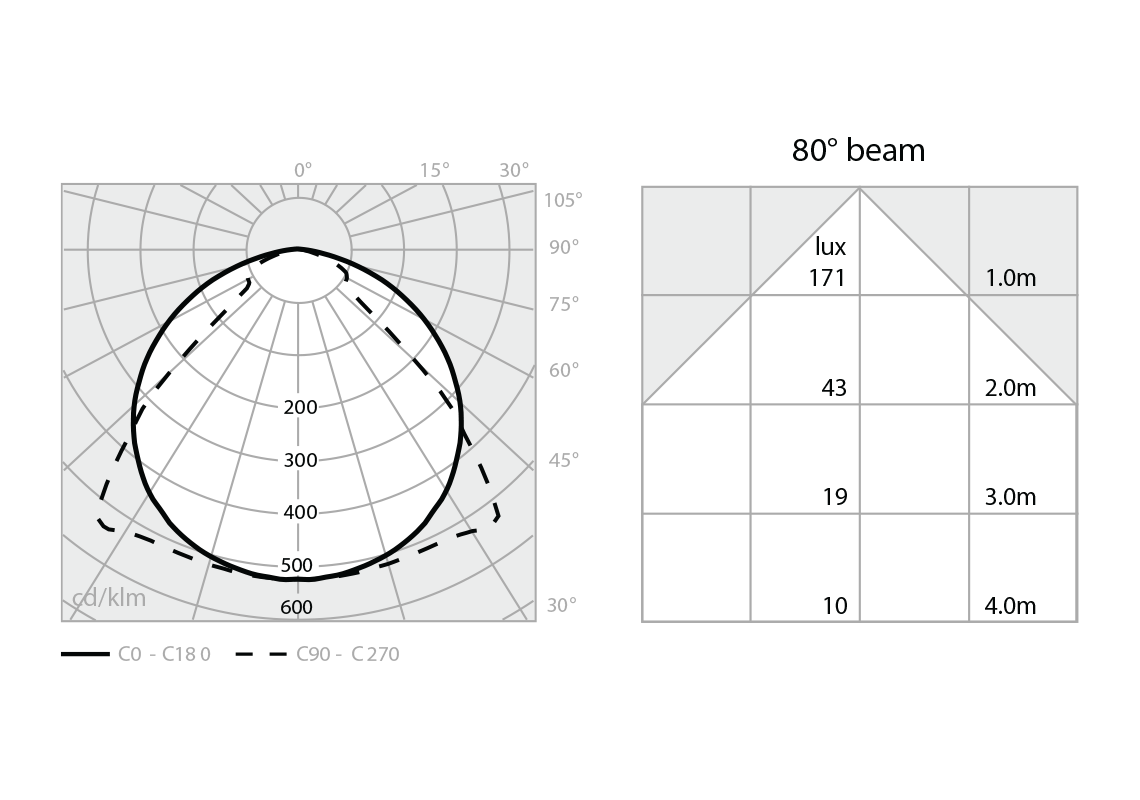

Beam angle
80º

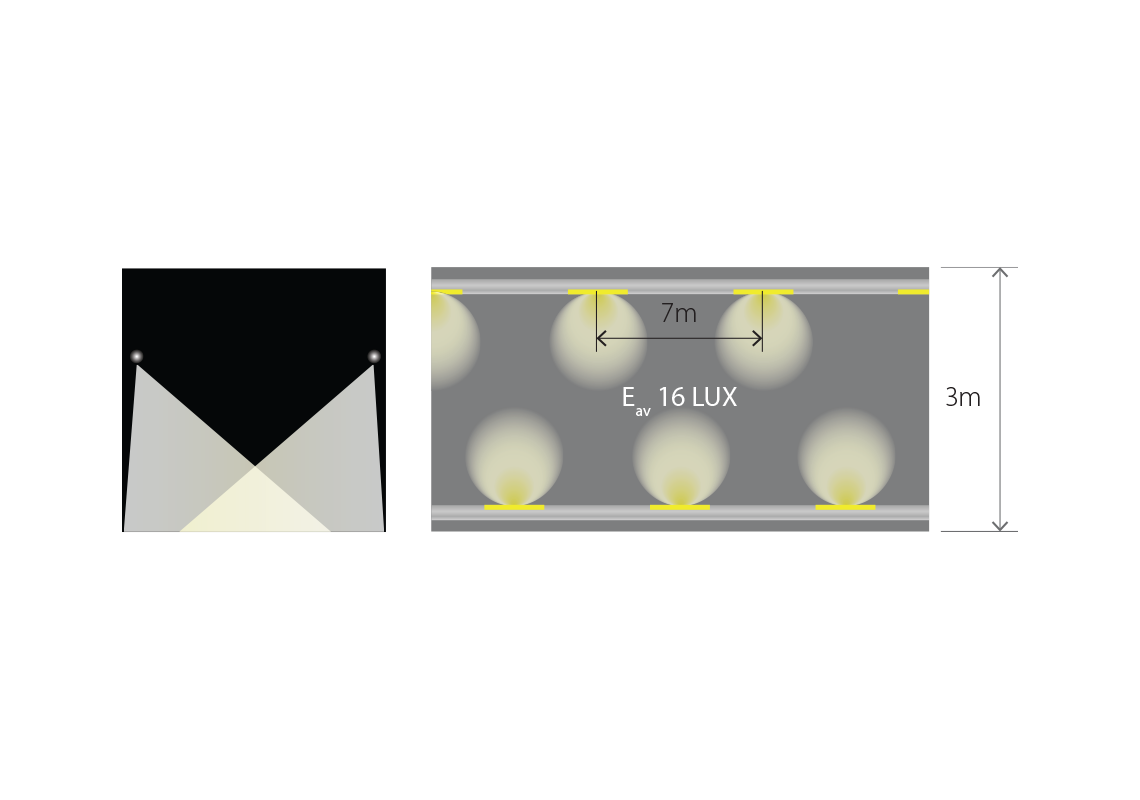

4.2W 395mm Uniformity Factor >0.50

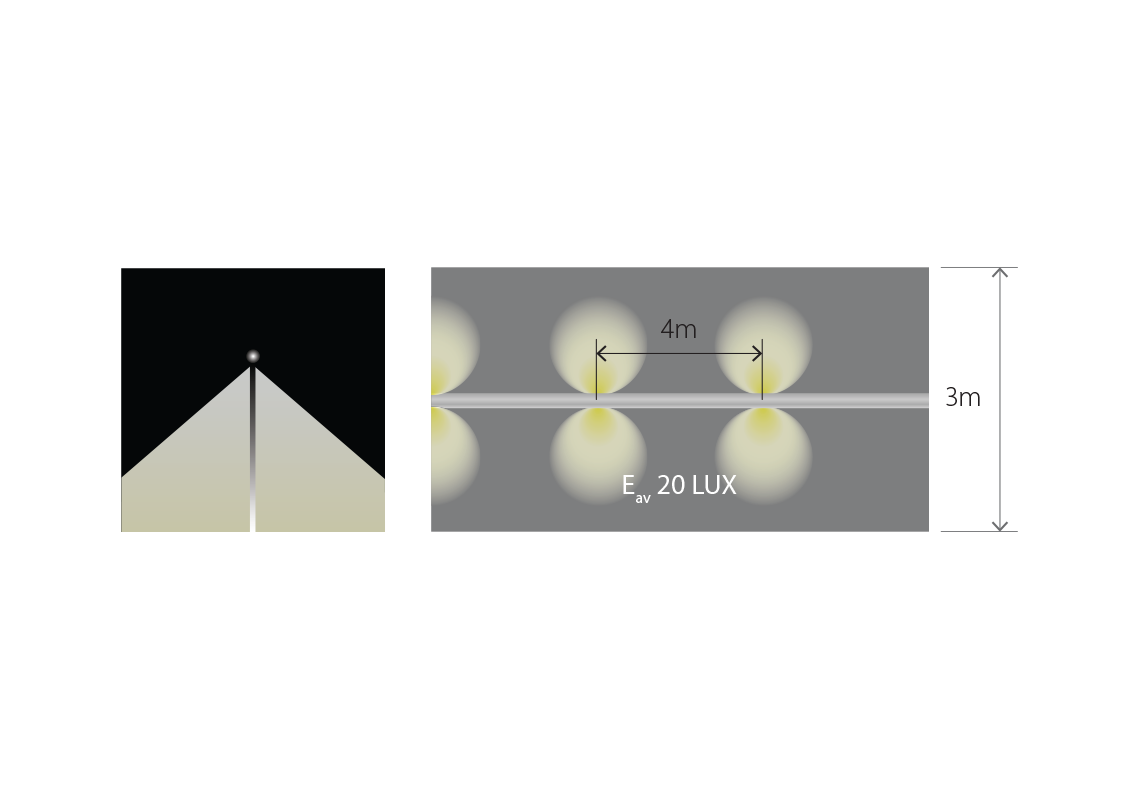

4.2W 395mm Uniformity Factor >0.25
