PowerLED IP Linear

The low profile, slim cross-section, diversity of lengths, light colour options and ease of installation make the product a truly flexible lighting solution for a variety of interior and exterior applications.

PowerLED IP Linear combines a classic design concept with technical qualities that assure the user flexibility of use and installation, and faultless performance throughout life. The technical principles of the PCB allow precise setting of the LED output, which means that all LEDs in PowerLED IP Linear guarantee the same output characteristics.

Brochure
Request more information

Product details

Three colour temperatures: 2700K, 4000K & 5000K
Anodised aluminium extrusion (silver & black) powder coated (white)
IK10 Vandal resistant
IP66 Weatherproof
Suitable for circular & non-circular profiles
Resin sealed acrylic lens
Polycarbonate end caps

Applications

Office, Commercial, Retail, Public Area, Leisure, Interior & Exterior environments
Coves & alcoves
Undercabinet
Reception desks
Kitchen & breakout areas
Toilets, Bathrooms & Changing facilities
Spa rooms
Entrance & corridor
Stair treads
Display walls
Perimeter wayfinding & orientation lighting
Wallwashing
Signage

Specifications

LTC PowerLED IP Linear is available in 2700K, 4000K and 5000K CCT.

Light Unit	PowerLED IP Linear
Item code	SL40914
Power input	24VDC
Power consumption	14W per metre
Power correction factor	>0.9
Typical CRI	Warm White 82 \| Neutral White 82 \| Cool White 82
Lumens per metre (Neutral White)	Frosted 1180 Lm \| Opal 723 Lm

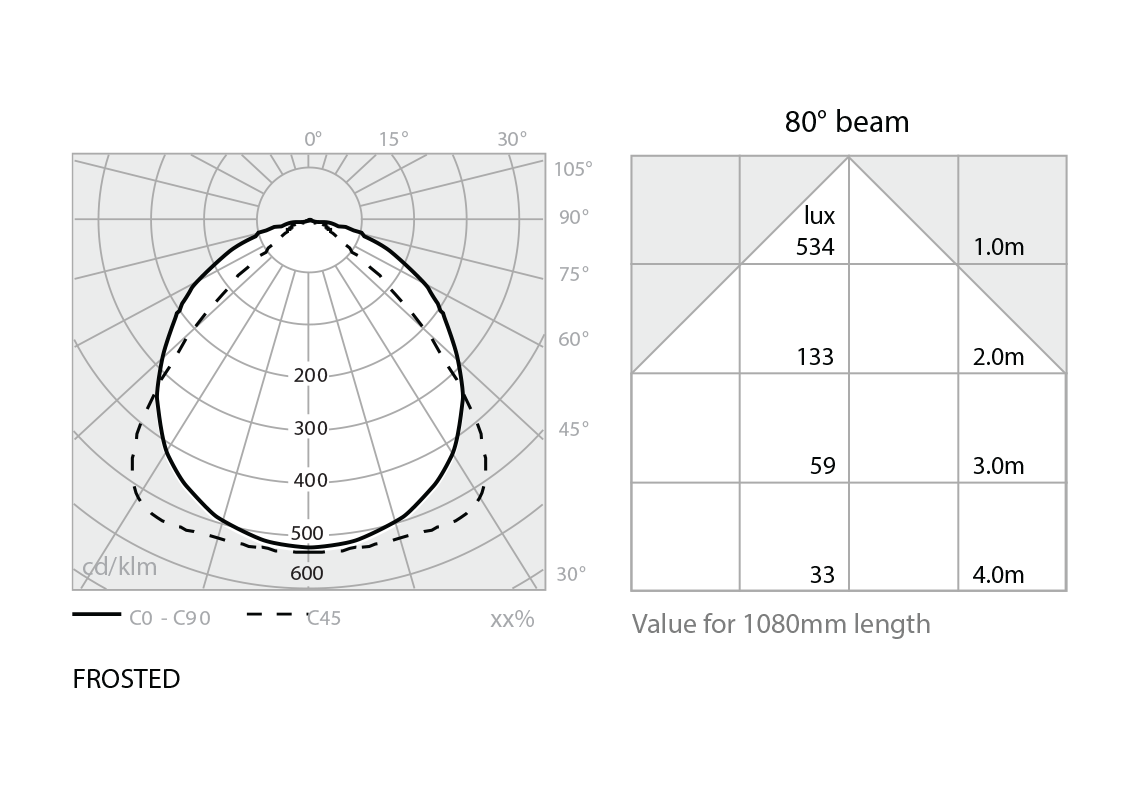

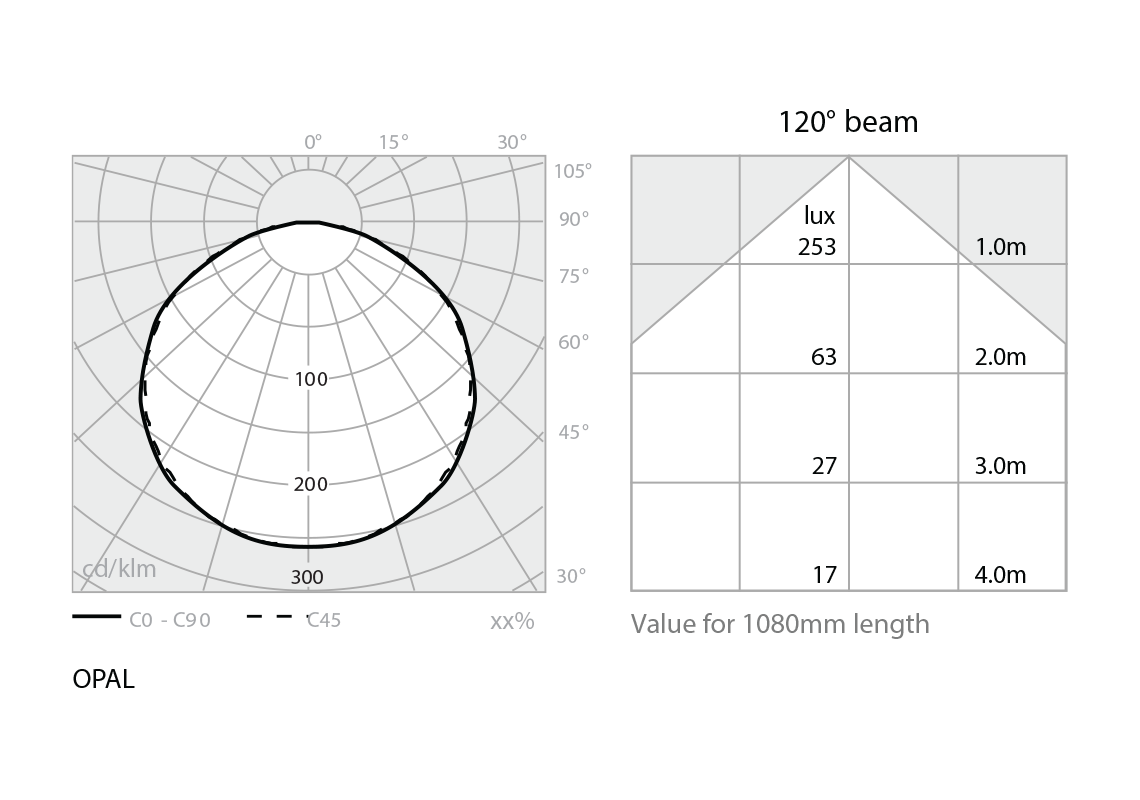

Beam angle	Frosted 80˚ \| Opal 120˚
CCT	2400K, 4000K & 5000K
Material/Finish	Anodised aluminium extrusion (silver & black), powder coated (white) Resin sealed acrylic lens or diffuser Polycarbonate end caps
IP Rating	IP66
IK Rating	IK10

Dimensions

Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.
