Pino 7 – High Bay
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Proin et mauris placerat, pulvinar erat varius, suscipit leo.
Aenean convallis neque elit. Sed scelerisque lobortis tortor, eget ultricies mi egestas quis. Aliquam posuere aliquam tellus sit amet lacinia. Vivamus ac volutpat est, sit amet dapibus mi. Curabitur gravida sem non convallis vulputate. Vivamus lacinia viverra facilisis. In imperdiet ornare tellus sed hendrerit. Etiam id auctor ipsum
Product details
- Efficient and compact design high bay light
- Light efficiency up to 160lm/W (5000K Ra80)
- Selectable power options – 100%, 80%, 60%
- IK08 Impact resistance
- IP65 Ingress protection
- Range of smart controls available
- Aluminum alloy body with polycarbonate optical lens
Applications
- Non-food industrial
- Warehouses
- Workshops
- Loading bays
- Awnings
- Aircraft hangers
- Indoor sports
Specifications
| Light Unit | Pino 7–200 |
|---|---|
| Item code | LTC Pino 7–200 |
| Power Consumption | 200W – Selectable to 100%, 80% & 60% |
| Input voltage | 120-277VAC, 50 / 60 Hz |
| Power factor | >0.92 |
| Surge Protection | 6kV line-line, 6kV line-earth |
| Driver Type | Constant Current (CC) |
| Control | 0-10V dimmable |
| Operating temperature | -30°C to +50°C |
| LED Type | LED 2835 |
| Luminous Flux | 200W:32000 |
| Efficacy (5000K Ra80) | 160lm/W |
| Correlated Color Temperature | 5000K (3000K, 4000K optional) |
| Color Rendering Index | 80 CRI |
| IK Rating | IK08 |
| IP Rating | IP65 |
| Accessories (optional) | Reflectors, safety chain, Zhaga motion sensors, mounting bracket, remote control |
Dimensions & Construction
Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.
| Pino 7–200 | |
|---|---|
| Dimensions (mm) | 200W: ⌀ 330 x 176 |
| Luminaire Net Weight | 2.3kg |
| Mounting option | Loop hanging or Ceiling mounting |
| Body Type | Aluminum alloy |
| Lens Type | Polycarbonate optical lens |
| Fixture Color | Black (RAL9017) |
LTC Pino 7–200
Beam Angles

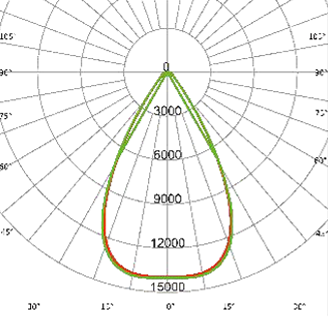

LS00221 (60°)

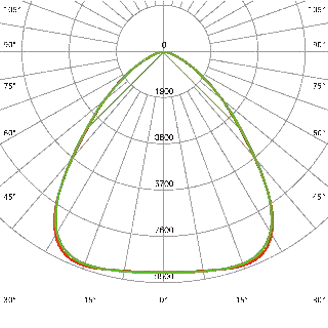

LS00220 (85°)

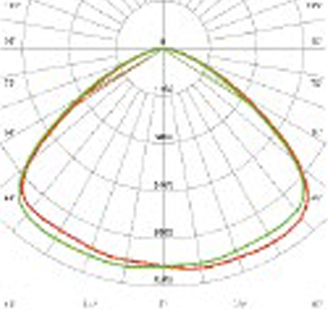

LS00219 (115°)
