LTC LUT11 LED Area Light
Highly efficient flood lights with unique asymmetric light distribution
Highly efficient flood lights suited to stadiums, sports fields as well as public, commercial and transport facility outdoor applications. Sturdy design coupled with unique light distribution delivers a highly effective solution for large space exterior lighting needs. Suitable for cut-off flood lighting applications.
Product details
- Light output up to 90,000Lm
- Built in surge protection
- Government energy rebates available
Applications
- Parking lots
- Small sports fields
- Industrial and Perimeter lighting
- Hard stand lighting
- Container storage yards
Accessories
- Photocell (NEMA socket: 3-pin / 5-pin / 7-pin)
- House-side shield for back light control
- Straight arm, slip fitter, wall mount, pole mount adaptors
Specifications
L TC LUT11 LED Area Lights are available from 180W to 600W.
| LUT11-180 | LUT11-240 | LUT11-300 | LUT11-450 | LUT11-600 | |
|---|---|---|---|---|---|
| Power Consumption (±5%) | 180W | 240W | 300W | 450W | 600W |
| Item code | 112089 | 110735 | 112090 | 112091 | 110303 |
| LED qty (pcs) | 200 | 400 | 600 | 800 | 1,000 |
| Input Voltage | 120–240VAC, 50/60Hz | ||||
| Power factor (PF) | >0.93 | ||||
| Surge protection | 6kV line-line, 10kV line-earth | ||||
| Driver Type | Constant Current (CC) | ||||
| Control | 1–10V dimming, DALI, Photocell | ||||
| LED Type | 5050 | ||||
| Lumen output (±10%) | 27,000lm | 36,000lm | 45,000lm | 67,500lm | 90,000lm |
| Efficacy | (5000K Ra70): up to 140 lm/W | ||||
| CRI | Ra70 | ||||
| CCT | 5000K (3000K & 4000K optional) | ||||
| Rating | IP66 | ||||
| Impact rating | IK10 | ||||
| Corrosion Category | C3 (ISO 9223:2012) | ||||
| EPA | 2.37 ft² (small) | ||||
| Operating Temperature | -30°C to +50°C | ||||
| LED Lifetime @ Ta=25°C | L90 49,000 hrs / L80 110,000 hrs / L70 180,000 hrs | ||||
| Warranty | 5 Years | ||||
| Accessories (optional) | Photocell (NEMA socket: 3-pin / 5-pin / 7-pin) House-side shield for back light control Straight arm, slip fitter, wall mount, pole mount adaptors |
||||
Dimensions & Construction
Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.
| LUT11-180, LUT11-240 & LUT11-300 | LUT11-450 & LUT11-600 | |
|---|---|---|
| Dimensions (mm) | 571 x 322 x 94 | 621 x 601 x 104 |
| Net Weight | 7.8kg (8.4kg for 300W) | 16.5kg (18kg for 600W) |
| Material | Aluminum alloy | |
| Finish | Powder coating with anti-corrosion treatment | |
| Fixture Color | Black or Bronze | |
LUT11-180, LUT11-240 & LUT11-300
LUT11-450 & LUT11-600
Mounting options

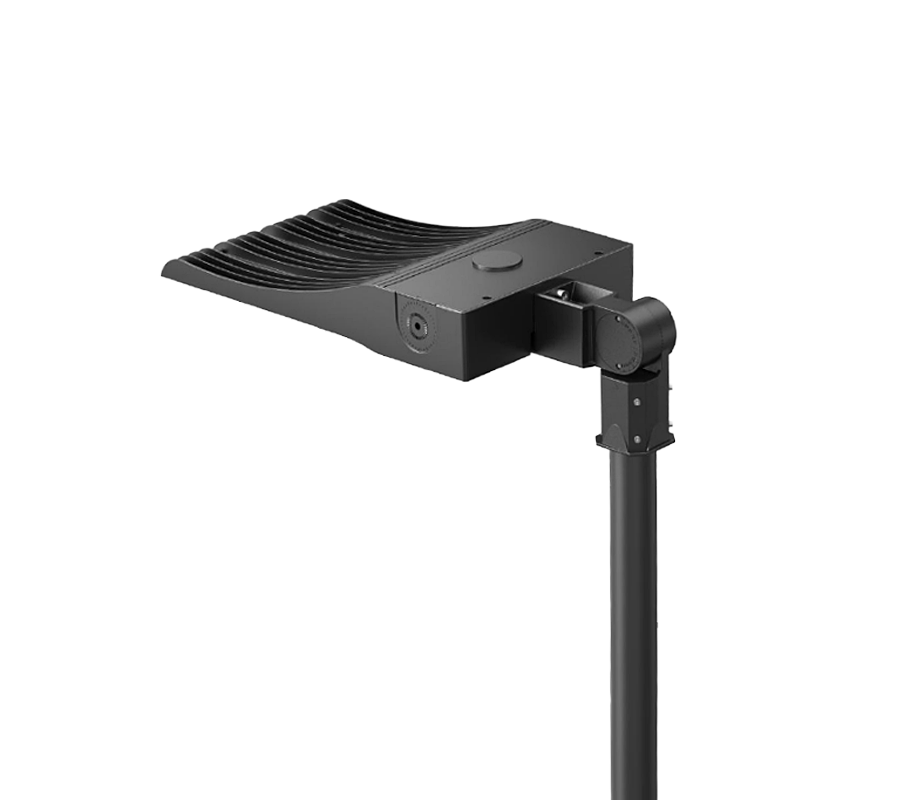

Pole mount: Top

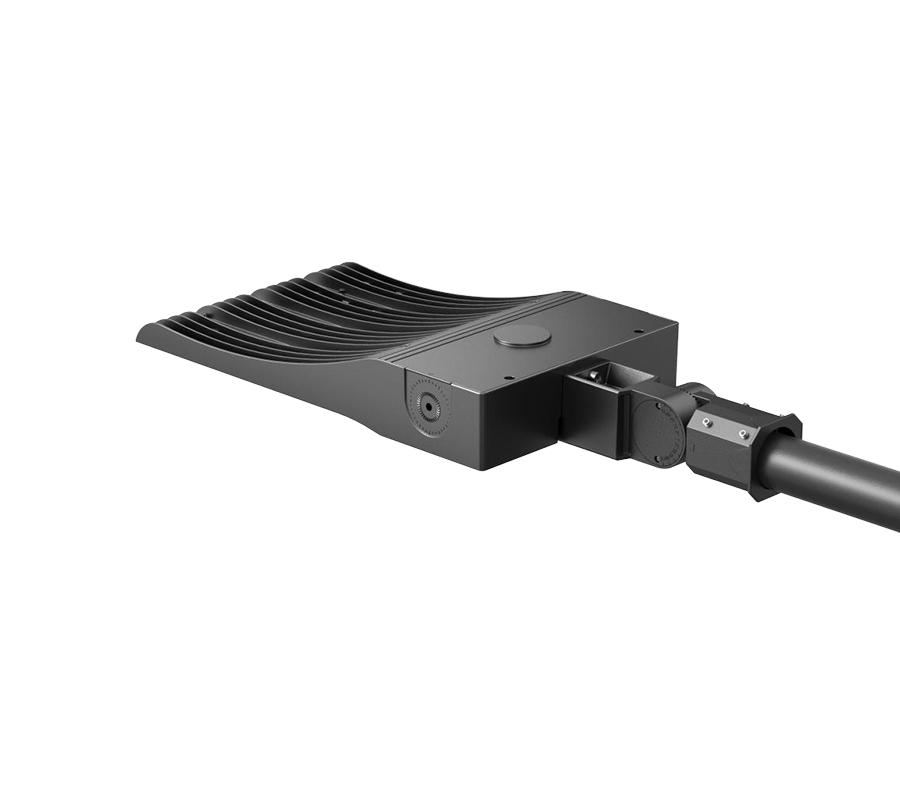

Pole top: Side

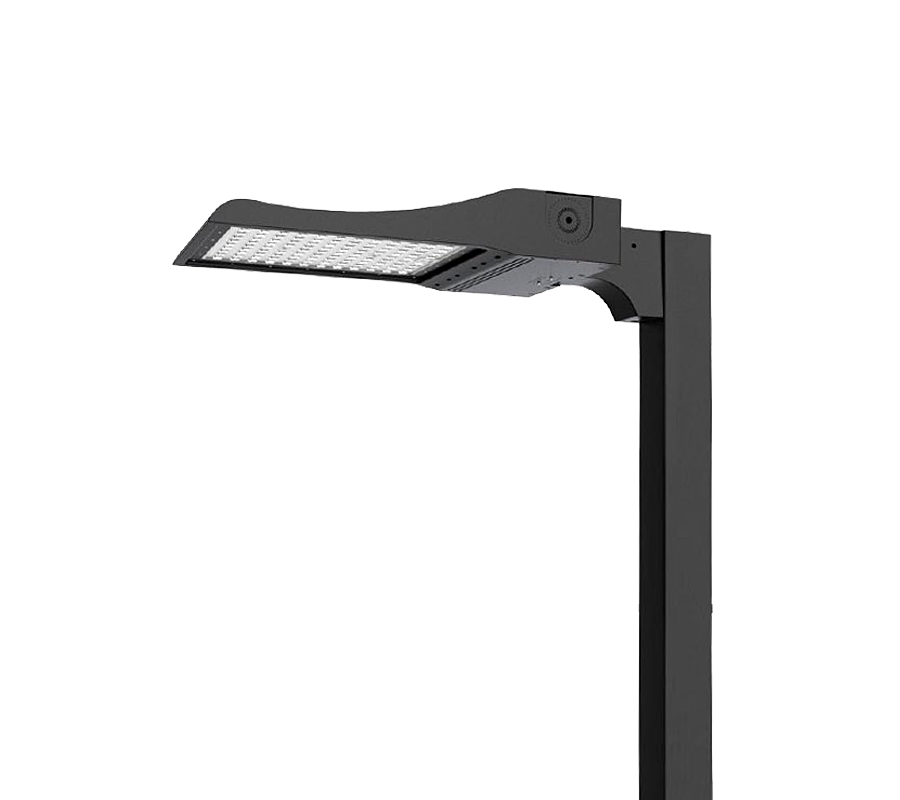

Straight arm

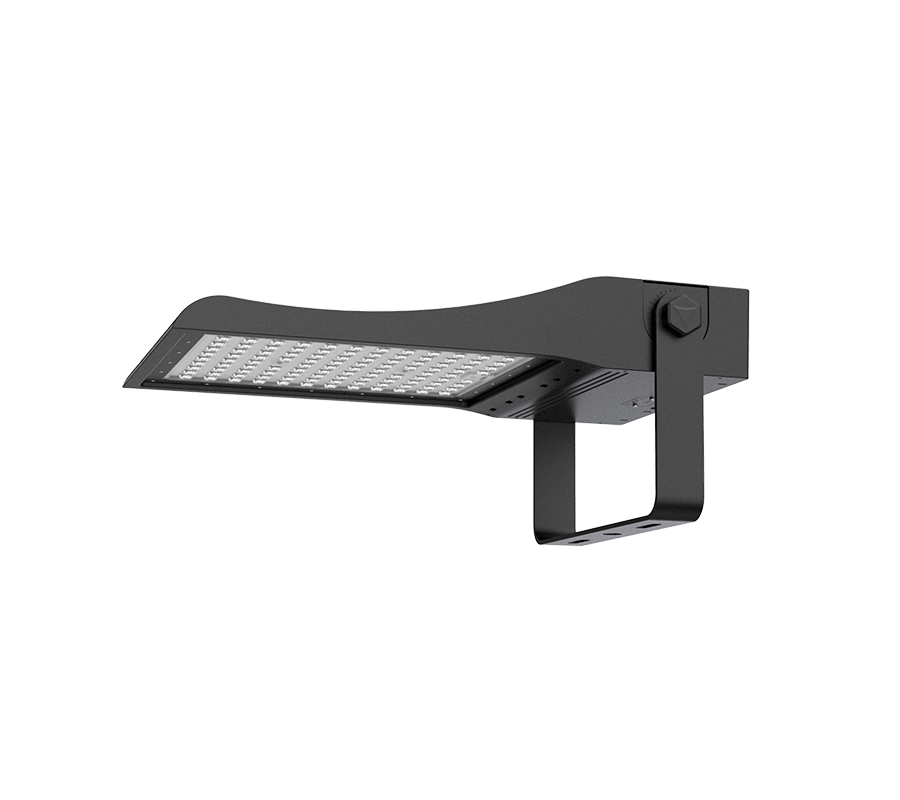

Wall
Beam Angles

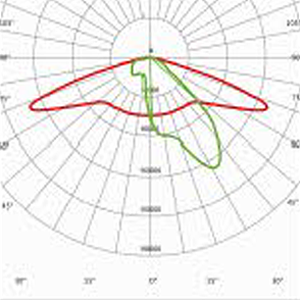

LS10502

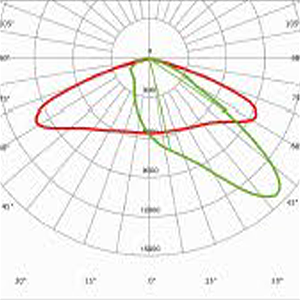

LS10503

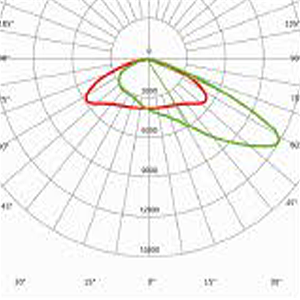

LS10504

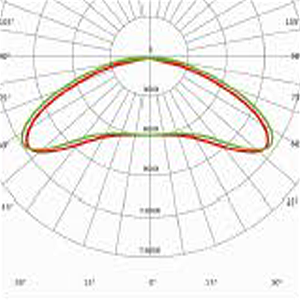

LS10505

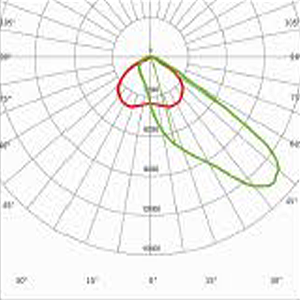

LS10506

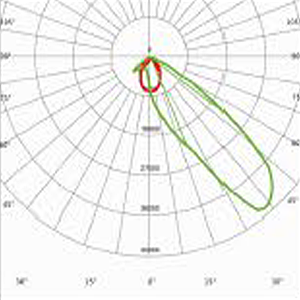

LS10507

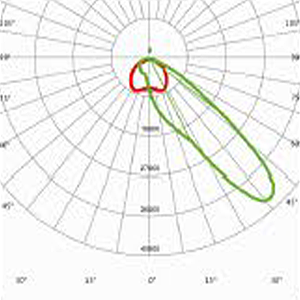

LS10508

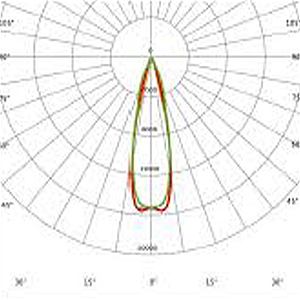

LS10533

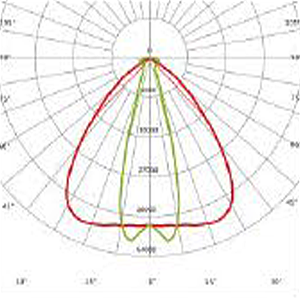

LS10564
