LTT71 Street Light

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Aenean convallis neque elit. Sed scelerisque lobortis tortor, eget ultricies mi egestas quis. Aliquam posuere aliquam tellus sit amet lacinia. Vivamus ac volutpat est, sit amet dapibus mi. Curabitur gravida sem non convallis vulputate. Vivamus lacinia viverra facilisis. In imperdiet ornare tellus sed hendrerit. Etiam id auctor ipsum

Brochure
Request more information

Product details

Minimalist and slim design
Light efficiency up to 143lm/W (4000K); 137lm/W (3000K)
Tool-free opening
IK09 Impact resistance
IP66 Ingress protection
Equipped with power cut-off switch and built-in level
Die-cast aluminum body with tempered glass & PC lens

Applications

Roadways & Residential streets
Highways & Main streets
Road intersections
Non-Motorized Vehicles and Sidewalk Lighting
Open Car Parks
Plazas & Square lighting
Outdoor Industrial and Logistics Areas

Specifications

Light Unit	LTT71 Street Light
Item code	LTCLTT71

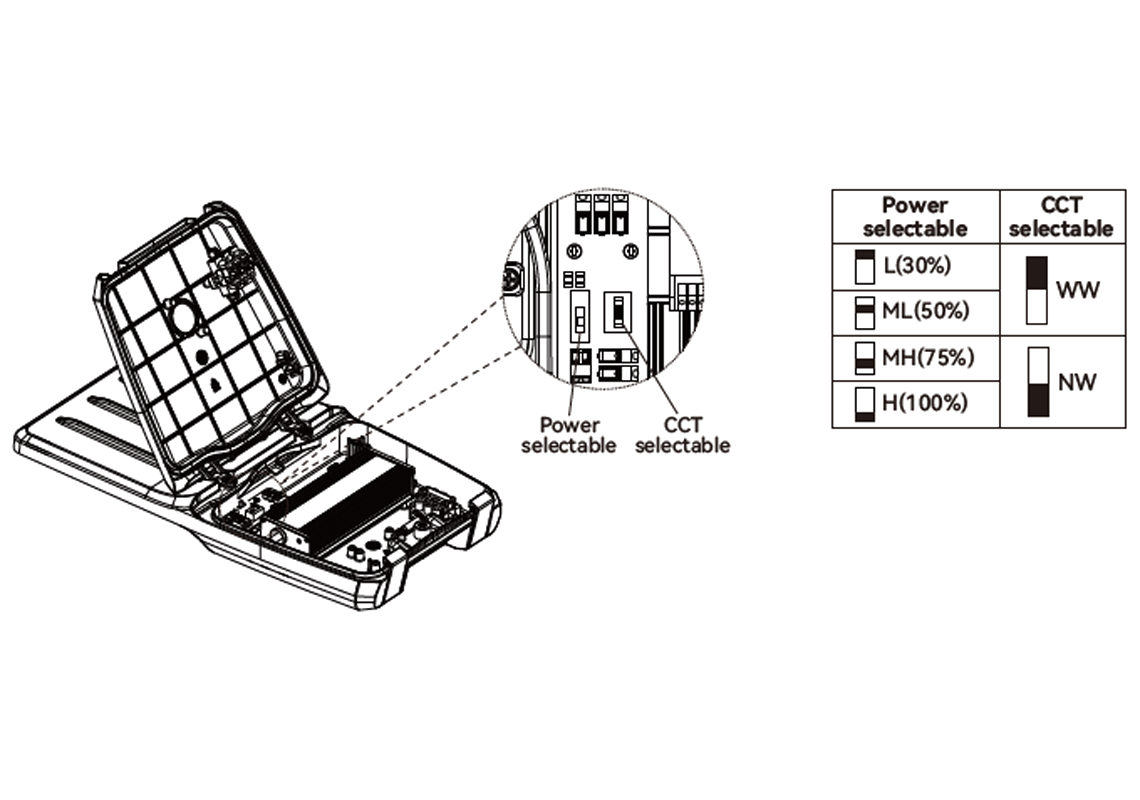

Power options (±5%)	15W / 25W / 37.5W / 50W Selectable
Input voltage	120–277Vac
Power factor	>0.97
Surge Protection	4KV L-L, 6KV L-E
Driver Type	Constant Current (CC)
Control (dependent on version)	ON/OFF or D4i
Operating temperature	-30°C to +50°C
LED Type	LED 3030
Luminous Flux (±10%)	6968-7585
Efficacy (4000K Ra70)	147lm/W
Correlated Color Temperature	CCT selectable – NW (4000K) or WW (3000K)
Color Rendering Index	Ra70
EPA	5.56 ft² / 0.52 m²
IK Rating	IK09
IP Rating	IP66
Corrosion Category	Class I: C3 (ISO 9223:2012) / Class II: C4 (ISO 9223:2012)

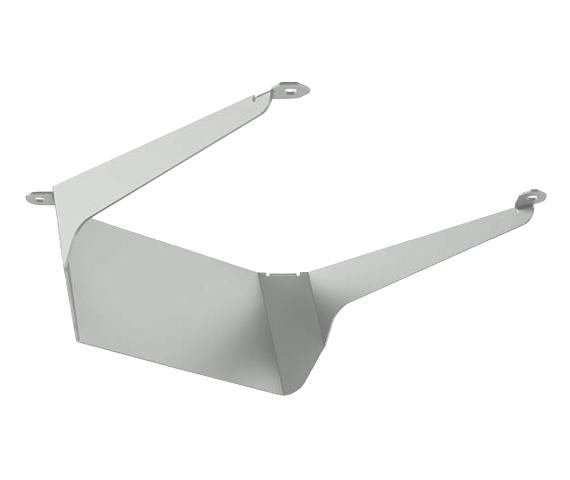

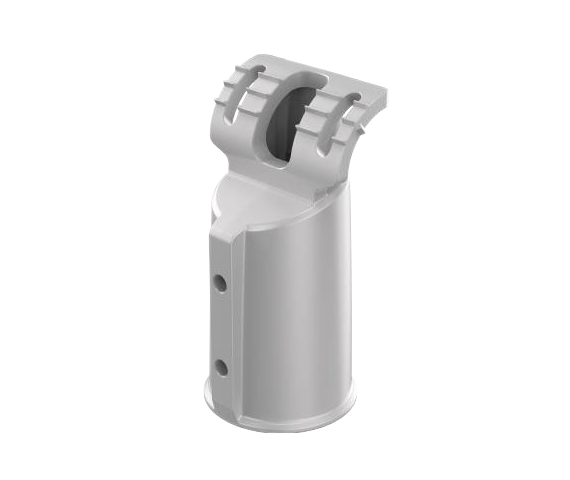

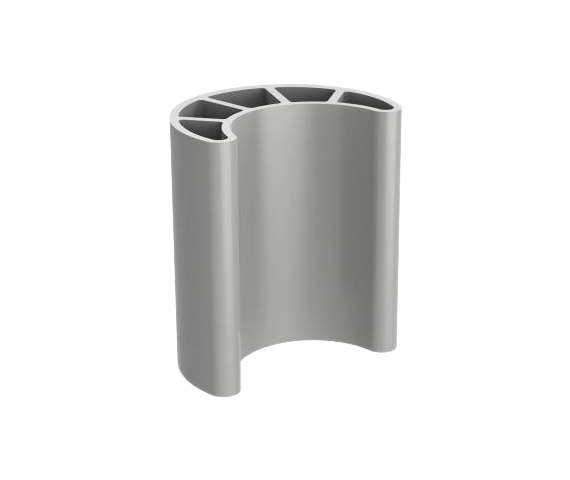

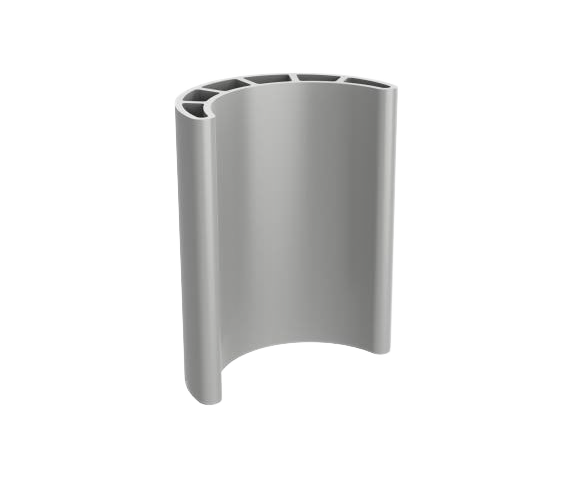

Options	Spigot 60mm Spigot 76mm 60mm to 42mm Adapter Fitting 76mm to 60mm Adapter Fitting Backlight Shield

Dimensions & Construction

Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.

	LTT71 Street Light
Dimensions (mm)	543 x 204 x 65
Luminaire Net Weight	3.2kg
Mounting option	Post-top mounting / Side-entry mounting
Spigot entry	60 or 76mm
Material	Aluminum alloy
Fixture Color	Silver Grey (RAL9006)
