LED Post Top Light

A sleek attractive design the blends perfectly with its environmental surroundings.

The LTC LVST03 LED post top and garden light features a contemporary architectural design with smooth housing delivering effective, quality lighting in outdoor situations including parks, pedestrian walkways, carparks and community areas. This light is highly customizable to fit all applications.

Brochure
Request more information

Product details

Lumen output: 4,800 – 12,000 lm
High efficacy: up to 130 lm/W (4000K)
Professional optics for glare control and high visibility
IK08 Impact resistance
IP66 Ingress protection
Post top mounting: Ø60 mm / Ø76 mm

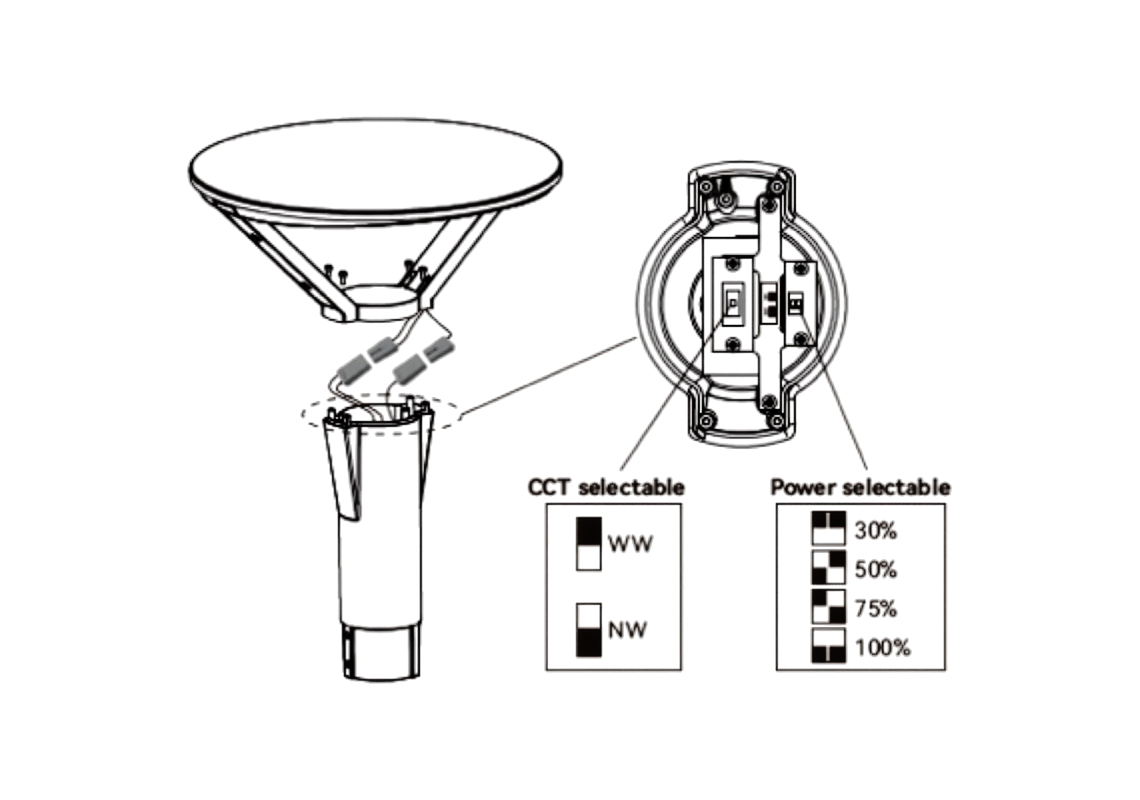

CCT selectable – NW (4000K) or WW (3000K)

Applications

Courtyards
Private & public gardens
Residential communities
Parking Lots
Pedestrian areas

Specifications

Light Unit	LED Post Top
Item code	LTCLVST03
Power options	40W / 60W / 75W / 100W Selectable
Input voltage	120–240VAC / 120–277VAC, 50/60Hz
Power factor	>0.9
Operating temperature	-30°C to +50°C
LED lifetime	up to 100,000 hrs (L70)
LED Type	LED 3030
Efficacy (4000K Ra70)	130lm/W
Correlated Color Temperature	4000K (3000K, 5000K optional)
Color Rendering Index	Ra70 (Ra 80 optional)
EPA	5.56 ft² / 0.52 m²
IK Rating	IK08
IP Rating	IP66
Category of Corrosion	C3
Accessories (optional)	Post top mount adaptor Wall mount adaptor

Dimensions & Construction

Detailed dimension drawings and polar diagrams are available from our team. Get in touch to discuss with our lighting experts.
Measurements and illustrations are approximate, do not scale.

	LED Post Top
Dimensions (mm)	⌀ 450 x 526
Luminaire Net Weight	7.4kg
Mounting option	Post top ⌀ 60mm / ⌀ 76mm
Material	Die Casting Aluminum
Material (Optical Lens)	Tempered Glass and Polycarbonate Optical Lens
Finish	Powder Coating
Fixture colour	Black
